Description
The SART Tester is designed to provide accurate, independent validation of the operation of any Radar-SART in accordance with the requirements of IMO Resolution A.802(19), SOLAS - 74/88 and local classification authorities.

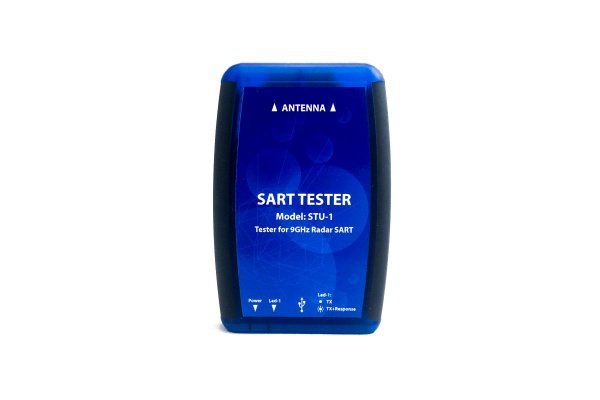

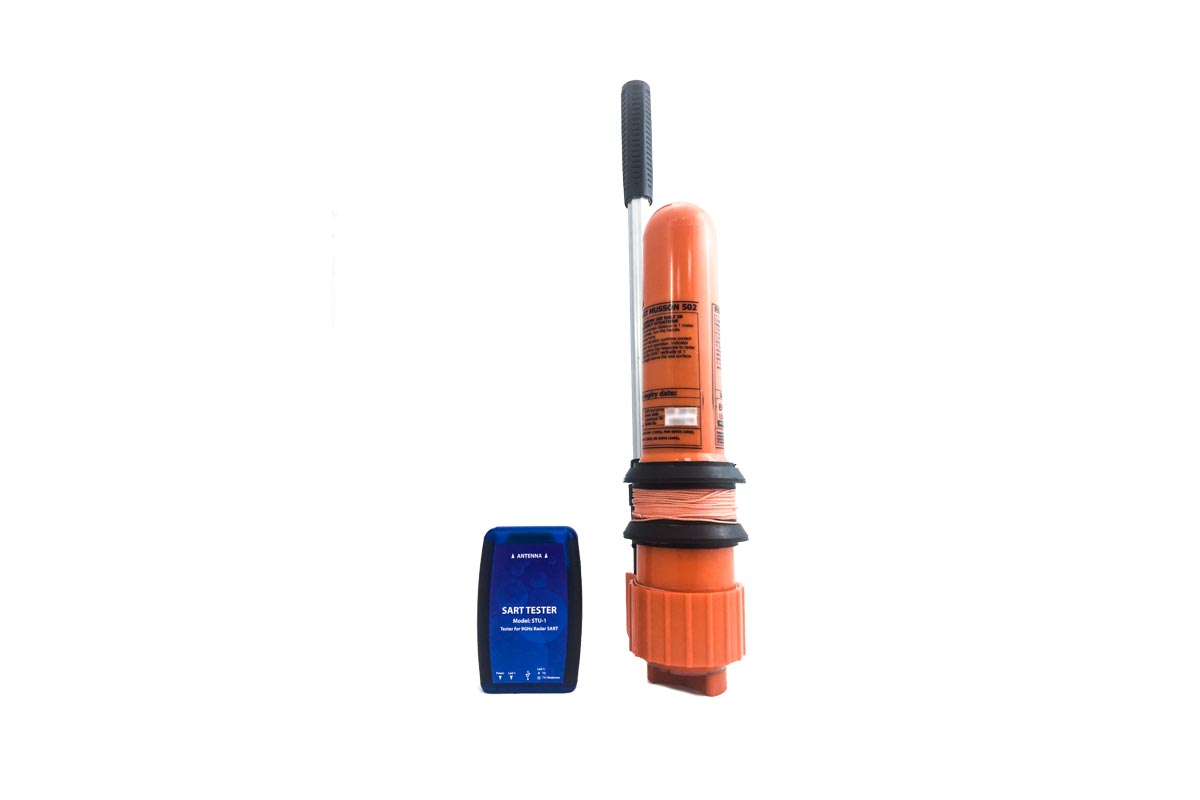

The SART Tester allows ensuring the SART meets the appropriate performance requirements. The SART Tester is portable and easy in use. It is far more effective and reliable than the primitive self-test function offered by any SART.
It allows to measure signal level and duration, count the number of sweeps and calculate the distance from SART across radial line on the radar screen and verifies the signal is in frequency range of 9140…9560 MHz.
Measurements of SART parameters are made through the broadcast.
FEATURES
- Fast check to make sure 9 GHz radar SART will operate in emegency
- Fast passed/not passed test
- Audio-control of the sweep signal presence
- Signal level measurement
- Verify the signal in frequency range of 9140…9560 MHz
- Number of sweeps in view of graph
- Respond singal duration
- Distance from SART across radial line on the radar screen
- Windows/macOS supported. Automatic test report creation.
Specification / Features
STU-1 makes fast check to ensure that transponder will operate in emegency
- Fast passed/not passed test
- Audio-control of the sweep signal presence
- Signal level measurement
- Verify the signal in frequency range of 9140…9560 MHz
- Number of sweeps in view of graph
- Respond singal duration
- Distance from SART across radial line on the radar screen
- Windows/Mac OS supported. Automatic test report creation.
Connection to PC
The newest software is designed to make survey work easier.

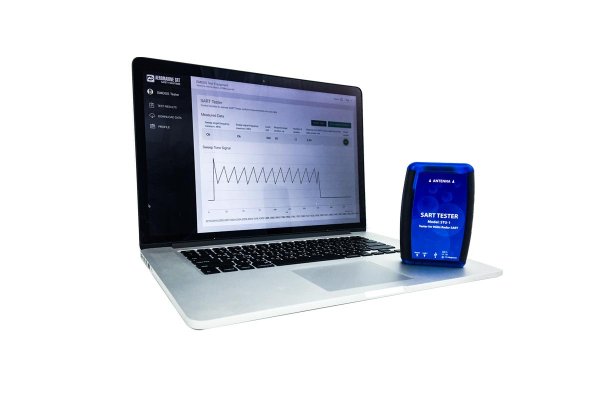

The device can be connected by means of standard USB A - USB B cable. Special software is available for download.
The software is compatible with Windows, MAC OS X and Linux. It provides possibility of automatic generation of IMO-like reports for all types of tested equipment. Even more, now a surveyor can generate one combined report of all the safety equipment tested on a vessel.
A surveyor’s paper work can be now reduced to minimum: just generate a report, print it and sign! Or save it and send by e-mail. As the reports are saved in doc/pdf format, you can put your logo, contacts, etc.
Linux, OS X and Windows 10 doesn’t require any drivers installation. For Windows 7 and earlier versions STM driver should be installed for proper connection on first run.

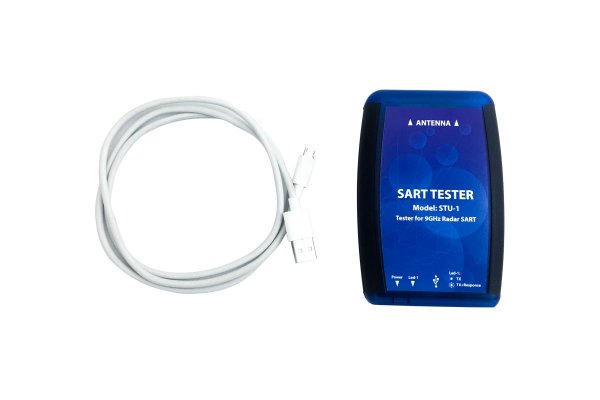

Complete set of 9 GHz SART Tester STU-1
- 9GHz Radar SART
- USB cable USB A - USB B
- Technical description and user manual
- Calibration certificate
- Device packing
Technical description
SART Tester carries out the tests in accordance with the requirement of IMO Resolution A.802(19) and SOLAS Convention 74/88.
The tester allows to perform:
- automatic measurement of SART parameters
- measurement of response signal duration within the range of 50…150 us
- measurement of response signal power level within the range of Рr = 300…950mW
- signal reception on frequency range of 9140…9560 MHz
- counting the number of sweeps in response signal
Specifications:
1. The Tester creates request pulses with parameters:
- Carrier frequency 9350 MHz
- Repetition rate 4000Hz, with accuracy ±10%
- Duration 1.4µs, with accuracy ±10%
2. The Tester allows to measure the parameters of the response signal with parameters:
- Duration 50…150µs with accuracy ±5%
- Power level indication 300...950 mW, with accuracy ±2.0dB
3. The current consumption of the device in measurement mode is < 350 mA.
4. Dimensions: 117 mm x 76 mm x 23 mm
5. Weight: 105g
6. Measurement of SART parameters is made through the broadcast by means of antenna.
7. According to service conditions the device is designed for operation in the internal shielded ship rooms at the temperature +5°С...+55°С, and relative air humidity of 95%.
